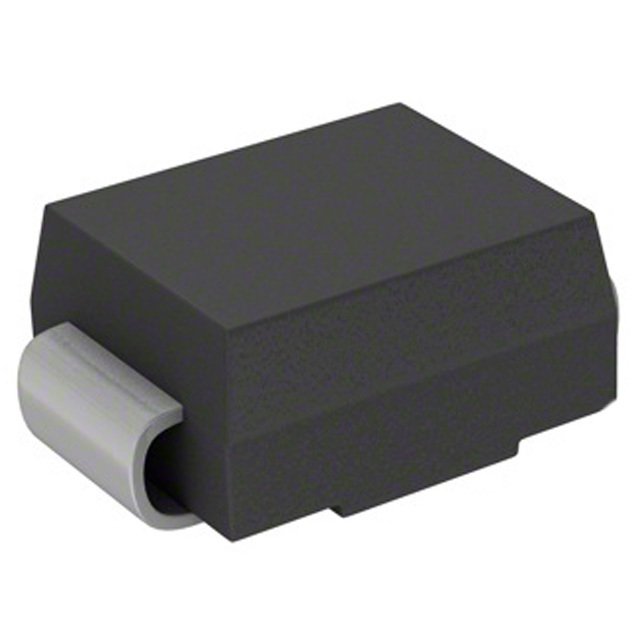

Image is for your reference only,please check specifications for details
- P1100SCLRP - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC23654965
-
Category:Thyristor
-
Package:DO-214AA-2
-
Datasheet:Datasheet 3D Model
-
Description:LITTELFUSE P1100SCLRP TVS Thyristor, Sidactor®, 2Pins, DO-214AA, SIDAC, 130V, 1Circuits
-
Stock Locations:
-
Availability:271 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.55
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- SIDACtor® Series DO-214AA are designed to protect baseband equipment such as modems, line cards, CPE and
- DSL from damaging overvoltage transients. The series provides a surface mount solution that enables equipment to comply with global regulatory standards.
- Features and Benefits
- Low voltage overshoot
- Low on-state voltage
- Does not degrade surge capability after multiple surge events within limit.
- Fails short circuit when surged in excess of ratings
- Low capacitance
- Applicable Global Standards
- TIA-968-A
- TIA-968-B
- ITU K.20/21 Enhanced Level
- ITU K.20/21 Basic Level
- GR 1089 Inter-building
- GR 1089 Intra-building
- IEC 61000-4-5
- YD/T 1082
- YD/T 993
- YD/T 950
P1100SCLRP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | DO-214AA-2 |
| Capacitance | 115 pF |
| Number of Circuits | 1 Circuit |
| Holding Current | 150 mA |
| Switching Voltage | 130 V |
| Holding Current (Max) | 150mA (Min) |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 4.57 mm |
| Size-Width | 3.94 mm |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
