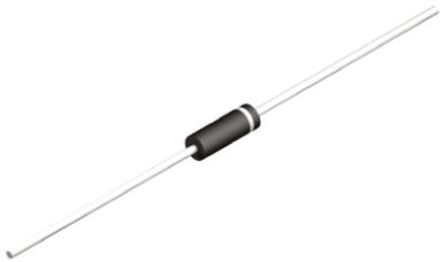

Image is for your reference only,please check specifications for details

P6KE7V5CA - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC105415559
Category:
TVS Diode
Package:
DO-15
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR P6KE7V5CA TVS Diode, P6KE Series, Bidirectional, 6.4V, 11.3V, DO-15, 2Pins
Stock Locations:
Availability:
3,192 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.62

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The P6KE series Transient Voltage Suppressor Diode offers 600W peak pulse power dissipation 1ms. It has excellent clamping capability, fast response time of <1ps from 0V to BV for unidirectional and 5ns for bidirectional. It is suitable for bipolar applications.
Low incremental surge resistance
Glass-passivated junction
Available in unidirectional and bidirectional
<1mA above 10V IR

Show

P6KE7V5CA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-15
Voltage Rating (DC)	7.50 V
Power Rating	600 W
Breakdown Voltage	7.13 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	5.00 W
Clamping Voltage	11.3 V
Test Current	1 mA
Max Breakdown Voltage	7.88 V
Peak Pulse Power	600 W
Min Breakdown Voltage	7.13 V
Reverse Breakdown Voltage	7.13 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175 ℃
	Show
Size-Length	7.6 mm
Size-Diameter	3.56 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
