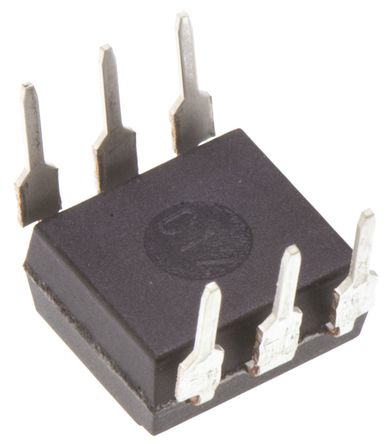

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The PC900V0NSZXF is a 1-channel PC900V0NSZXF series Digital Output Normal OFF Operation DC Input Photocoupler contains an IRED optically coupled to an OPIC chip. Transistor of detector side in bipolar configuration may be damaged by static electricity due to its minute design. When handling these devices, general countermeasure against static electricity should be taken to avoid breakdown of devices or degradation of characteristics. In order to stabilize power supply line, we should certainly recommend to connect a by-pass capacitor of 0.01µF or more between VCC and GND near the device. The detector which is used in this device, has parasitic diode between each pins and GND. There are cases that miss operation or destruction possibly may be occurred if electric potential of any pin becomes below GND level even for instant. Therefore it shall be recommended to design the circuit that electric potential of any pin does not become below GND level.
- Open-collector output
- TTL and LSTTL compatible output
- 50mA Maximum collector current
- Reflow, flow and hand soldering method
- Solvent cleaning
- Ultrasonic cleaning
PC900V0NSZXF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 6 Pin |
| Case/Package | DIP-6 |
| Rise/Fall Time | 100ns, 50ns |
| Input Voltage (DC) | 1.10 V |
| Output Voltage | 16.0 V |
| Output Current | 50 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 6 Position |
| Forward Voltage | 1.1 V |
| Input Current | 4 mA |
| Power Dissipation | 170 mW |
| Rise Time | 0.1 µs |
| Isolation Voltage | 5000 Vrms |
| Forward Current | 50 mA |
| Input Current (Min) | 50 mA |
| Reverse Breakdown Voltage | 6 V |
| Maximum Forward Voltage (Max) | 1.4 V |
| Forward Current (Max) | 50 mA |
| Fall Time | 0.05 µs |
| Fall Time (Max) | 0.5 µs |
| Fall Time (Max) | 0.5 µs |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Power Dissipation (Max) | 170 mW |
| Supply Voltage | 3V ~ 15V |
| Show | |
| Size-Length | 7.12 mm |
| Size-Width | 6.5 mm |
| Size-Height | 3.5 mm |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
