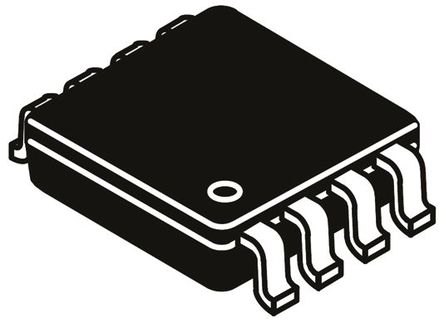

Image is for your reference only,please check specifications for details

PCA9306USG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC10301131
Category:
Voltage Level Translator IC
Package:
US-8
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR PCA9306USG Voltage Level Translator, Bidirectional, 2Input, 64mA, 1.5ns, 0 V to 5.5V, VSSOP-8
Stock Locations:
Availability:
1,487 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.91

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PCA9306USG is a dual bi-directional I²C-bus and SMBus Voltage-Level Translator with an enable (EN) input. Low 3.5R ON-state connection between input and output ports provides less signal distortion.
Provides bidirectional voltage translation with no direction pin
Lock-up free operation
Flow through pin out for ease of printed-circuit board trace routing
ESD sensitive device, take proper precaution while handling the device.

Show

PCA9306USG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	US-8
Supply Voltage (DC)	0.00V(min), 5.50V(max)
Halogen Free Status	Halogen Free
Output Current	64 mA
Number of Circuits	1 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Number of Bits	2 Bit
Number of Inputs	2 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Number of Output Channels	1 Channel
Supply Voltage	1V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	0 V
	Show
Size-Length	2.1 mm
Size-Width	2.4 mm
Size-Height	0.8 mm
Operating Temperature	-55℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
