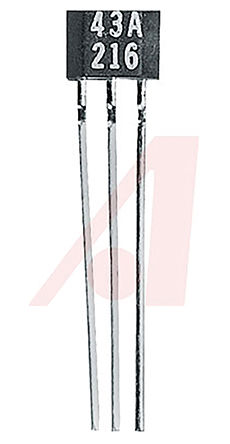

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SS40A is a bipolar Hall-effect Sensor has thermally balanced integrated circuit over full temperature range. The bipolar magnetic respond to alternating North and South poles. A built-in regulator provides very stable operation over 4.5 to 24VDC supply voltage range and internal circuitry prevents sensor damage in case the supply voltage polarity is accidentally reversed. The bipolar hall-effect sensor is small, versatile digital Hall-effect devices that are operated by the magnetic field from a permanent magnet or an electromagnet. The open-collector sinking output voltage is easily interfaced with a wide variety of electronic circuits.
Miniature construction
Power consumption of only 5mA maximum at 4.5VDC for energy efficiency
Digital current sinking output
Bipolar magnetic for ring magnet applications
High output current capability (20mA)
High speed, operates from 0 to over 100kHz
Built-in reverse polarity protection
ESD sensitive device, take proper precaution while handling the device.

Show

SS40A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Supply Voltage (DC)	24.0 V
Operating Voltage	4.5V ~ 24V
Output Voltage	0.4 V
Output Current	20 mA
Supply Current	10 mA
Number of Positions	3 Position
Input Current	6.50 mA
Switching Current	20 mA
Output Current (Max)	20 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5VDC ~ 24VDC
Supply Voltage (Max)	24 VDC
Supply Voltage (Min)	4.5 VDC
	Show
Size-Length	4.1 mm
Size-Width	3.00 mm
Size-Height	4.1 mm
Size-Thickness	1.60 mm
Color	Black
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8542390000
ECCN Code	EAR99
