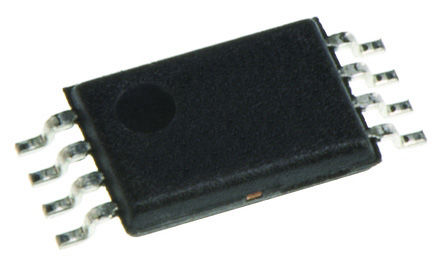

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PCA9515APW is a dual-channel bidirectional I²C Buffer is operational at 2.3 to 3.6-V VCC. It is a BiCMOS integrated circuit intended for I²C bus and SMBus systems applications. The device contains two identical bidirectional open-drain buffer circuits that enable I²C and similar bus systems to be extended without degradation of system performance. It buffers both the serial data (SDA) and serial clock (SCL) signals on the I²C bus, while retaining all the operating modes and features of the I²C system. This enables two buses of 400pF bus capacitance to be connected in an I²C application. The I²C bus capacitance limit of 400pF restricts the number of devices and bus length. Using this buffer enables the system designer to isolate two halves of a bus, accommodating more I²C devices or longer trace lengths. It has an active-high enable (EN) input with an internal pull-up, which allows the user to select when the repeater is active.
Active-high repeater-enable input
Lock-up free operation
Powered-OFF high-impedance I²C-bus pins
Accommodates standard-mode and fast-mode I²C devices and multiple masters

Show

PCA9515APW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TSSOP-8
Supply Voltage (DC)	2.30V ~ 5.50V
Number of Outputs	2 Output
Output Current	6 mA
Supply Current	500 µA
Number of Channels	1 Channel
Number of Positions	8 Position
Input Capacitance	7 pF
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.3 V
	Show
Size-Length	4.5 mm
Size-Width	3.1 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
