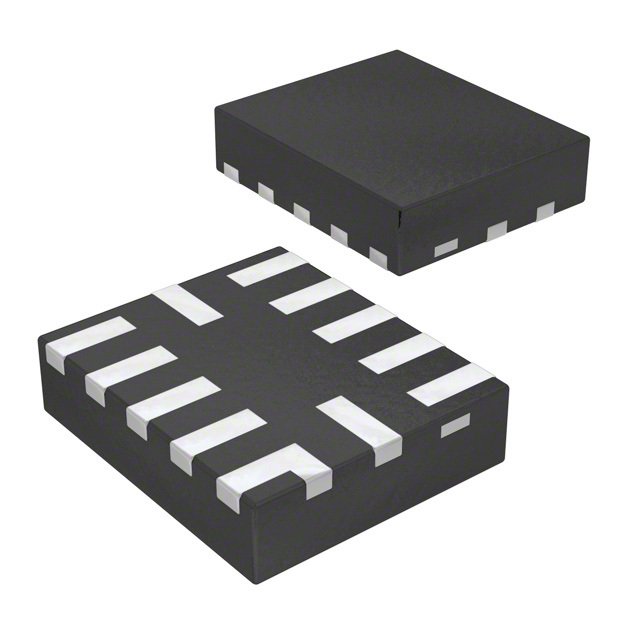

- PCA9571GUX - NXP
-
Manufacturer:NXP
-
ManyChip's Part#:MC41781083
-
Category:Interface IC, Interface Controller
-
Package:XQFN-12
-
Datasheet:Datasheet 3D Model
-
Description:PCA9571 - Remote 8Bit general purpose outputs for 1MHz I2C-bus QFN 12Pin
-
Stock Locations:
-
Availability:310 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.8
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Overview
- The PCA9571 is a CMOS device that provide 8 bits of General Purpose parallel Output (GPO) expansion in low voltage processor and handheld battery powered mobile applications. They operate at 1 MHz I²C-bus speeds on a lightly loaded bus (<100 pF) while maintaining backward compatibility to Fast-mode (400 kHz) and Standard-mode (100 kHz).
- The PCA9571 is a streamlined GPO that consists of 8-bit push-pull outputs that offer low current consumption, small packaging options and a low operating voltage range of 1.1 V to 3.6 V. The latched outputs are symmetrical 4 mA current drive capability at 3.3 V to drive various control logic. The PCA9571 output expanders provide a simple solution when additional outputs are needed while keeping interconnections and floor space to a minimum, for example, in battery powered mobile applications where PCBs are crowded for interfacing to sensors, push buttons, etc.
- The PCA9571 contains an internal Power-On Reset (POR) and a Software Reset feature that initializes the device to its default state.
- MoreLess
- ## Features
- * 1 MHz I²C-bus interface with 6 mA SDA sink capability for lightly loaded buses (<100 pF) and improved power consumption
- * Compliant with the I²C-bus Fast and Standard modes
- * 1.1 V to 3.6 V operation
- * Latched outputs with a sink/source capability of 4 mA at 3.3 V
- * Readable device ID (manufacturer, device type, and revision)
- * Software Reset
- * Power-On Reset
- * Low standby current
- * ‑40 °C to +85 °C operation
- * ESD protection exceeds 2000 V HBM per JESD22-A114 and 1000 V CDM per JESD22-C101
- * Latch-up testing is done to JEDEC standard JESD78 which exceeds 100 mA
- * Packages offered: XQFN12, TSSOP14 and DHVQFN14
- ## Target Applications
- * Smartphones and tablets
- * Portable medical equipment
- * Portable instrumentation and test measurement
- ## Features
PCA9571GUX Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 12 Pin |
| Case/Package | XQFN-12 |
| Output Current | 4 mA |
| Number of Positions | 12 Position |
| Clock Speed | 1 MHz |
| Number of Inputs and Outputs | 8 Input IO |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 1.1V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 1.1 V |
| Show | |
| Weight | 3.9802550000000005 mg |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
