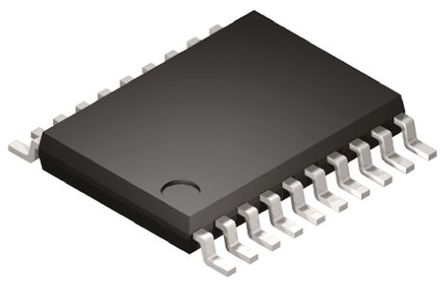

Image is for your reference only,please check specifications for details

PCA9634PW - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC121978825
Category:
LED Driver, LED Display Driver
Package:
TSSOP
Datasheet:
Datasheet 3D Model
Description:
NXP PCA9634PW Led Driver, 8Outputs, 2.3V-5.5V in, 1MHz switch, 5.5V/25mA out, TSSOP-20
Stock Locations:
Availability:
563 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.58

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PCA9634PW is a 8-bit Fm+ I²C-bus LED Driver optimized for red/green/blue/amber (RGBA) colour mixing applications. Each LED output has its own 8-bit resolution (256 steps) fixed frequency individual PWM controller that operates at 97kHz with a duty cycle that is adjustable from 0 to 99.6% to allow the LED to be set to a specific brightness value. An additional 8-bit resolution (256 steps) Group PWM controller has both a fixed frequency of 190Hz and an adjustable frequency between 24Hz to once every 10.73seconds with a duty cycle that is adjustable from 0 to 99.6% that is used to either dim or blink all LEDs with the same value.
Software reset feature (SWRST call) allows the device to be reset through the I²C-bus
Internal power-on reset
Noise filter on SDA/SCL inputs
No glitch on power-up
Supports hot insertion
Low standby current
Latch-up testing is done to JEDEC standard JESD78 which exceeds 100mA
ESD sensitive device, take proper precaution while handling the device.

Show

PCA9634PW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	TSSOP
Number of Outputs	8 Output
Input Voltage (DC)	2.30V ~ 5.50V
Output Voltage	5.5 V
Output Current	25 mA
Number of Positions	20 Position
Switching Frequency	1 MHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.3 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	6.6 mm
Size-Width	4.5 mm
Size-Height	0.95 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
