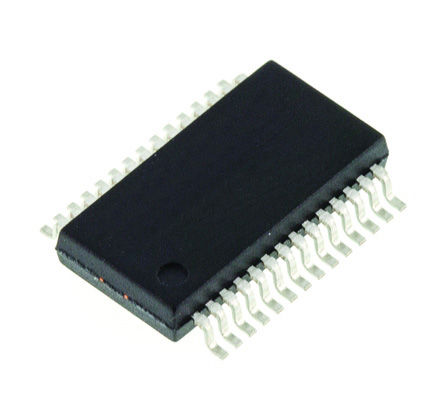

Image is for your reference only,please check specifications for details
- PCM1794DB - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC23513133
-
Category:Digital to Analog, DAC IC
-
Package:SSOP-28
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS PCM1794DB Digital to Analogue Converter, 24Bit, 192KSPS, Serial, 4.75V to 5.25V, SSOP, 28Pins
-
Stock Locations:
-
Availability:3,878 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 25.81
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The PCM1794 is a monolithic CMOS integrated circuit that includes stereo digital-to-analog converters and support circuitry in a small 28-lead SSOP package. The data converters use TI’s advanced segment DAC architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. The PCM1794 provides balanced current outputs, allowing the user to optimize analog performance externally. Sampling rates up to 200 kHz are supported.
- FEATURES
- • 24-Bit Resolution
- • Analog Performance:
- − Dynamic Range: 132 dB (9 V RMS, Mono)
- 129 dB (4.5 V RMS, Stereo)
- 127 dB (2 V RMS, Stereo)
- − THD+N: 0.0004%
- • Differential Current Output: 7.8 mA p-p
- • 8× Oversampling Digital Filter:
- − Stop-Band Attenuation: –130 dB
- − Pass-Band Ripple: ±0.00001 dB
- • Sampling Frequency: 10 kHz to 200 kHz
- • System Clock: 128, 192, 256, 384, 512, or 768 fS With Autodetect
- • Accepts 16- and 24-Bit Audio Data
- • PCM Data Formats: Standard, I2S, and Left-Justified
- • Optional Interface Available to External Digital Filter or DSP
- • Digital De-Emphasis
- • Digital Filter Rolloff: Sharp or Slow
- • Soft Mute
- • Zero Flag
- • Dual-Supply Operation:
- − 5-V Analog, 3.3-V Digital
- • 5-V Tolerant Digital Inputs
- • Small 28-Lead SSOP Package
- APPLICATIONS
- • A/V Receivers
- • DVD Players
- • Musical Instruments
- • HDTV Receivers
- • Car Audio Systems
- • Digital Multitrack Recorders
- • Other Applications Requiring 24-Bit Audio
PCM1794DB Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | SSOP-28 |
| Supply Voltage (DC) | 3.30 V, 5.00 V (max) |
| Power Rating | 205 W |
| Number of Outputs | 2 Output |
| Supply Current | 45.0 mA |
| Number of Channels | 2 Channel |
| Number of Positions | 28 Position |
| Number of Bits | 24 Bit |
| Power Dissipation | 0.25 W |
| Sample Rate | 200 ksps |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Power Dissipation (Max) | 250 mW |
| Supply Voltage | 4.75V ~ 5.25V |
| Supply Voltage (Max) | 5.25 V |
| Supply Voltage (Min) | 4.75 V |
| Show | |
| Size-Length | 10.2 mm |
| Size-Width | 5.3 mm |
| Size-Height | 1.95 mm |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Not Recommended for New Designs |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| HK STC License | NLR |
