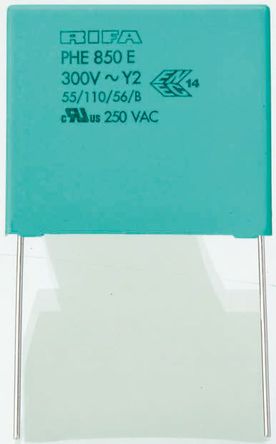

Image is for your reference only,please check specifications for details

PHE850EB5100MB04R17 - KEMET Corporation
Manufacturer:
KEMET Corporation
ManyChip's Part#:
MC12254503
Category:
Film Capacitor
Datasheet:
Datasheet 3D Model
Description:
Cap Film 0.01uF 1250V PP 20% (18 X 5.5 X 10.5mm) Radial 15mm 110℃ Bulk
Stock Locations:
Availability:
3,775 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.5

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**PHE850 Series**
The PHE850 series of film capacitors from KEMET features a winding metallised polypropylene film construction, encapsulated in self-extinguishing material that meets UL 94V-0 requirements. These capacitors are suitable for use as interference in Y2 applications but are appropriate to use in series with the mains

Show

PHE850EB5100MB04R17 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Voltage Rating (DC)	1250 V
Voltage Rating (AC)	300 V
Capacitance	10000 pF
Capacitance Tolerance	±20 %
Operating Temperature (Max)	110 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	18 mm
Size-Width	10.5 mm
Size-Height	10.5 mm
Lead Length	17 mm
Dielectric Material	Polypropylene
Operating Temperature	-55℃ ~ 110℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
