Description

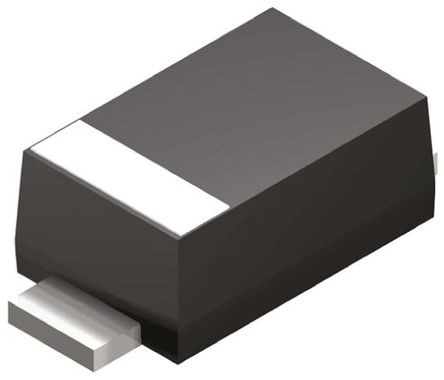

The PMEG6010ER is a low VF planar maximum efficiency general application (MEGA) Schottky Barrier Rectifier with an integrated guard ring for stress protection. It is encapsulated in a small and flat lead surface-mounted device (SMD) plastic package.
Average forward current
High power capability due to clip-bond technology
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply (SMPS)
Reverse polarity protection
Low power consumption
AEC-Q101 qualified

Show

PMEG6010ER Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123
Number of Positions	2 Position
Forward Current	1 A
Max Forward Surge Current (Ifsm)	50 A
Maximum Forward Voltage (Max)	530 mV
Forward Current (Max)	1 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	2.8 mm
Size-Width	1.9 mm
Size-Height	1.1 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
