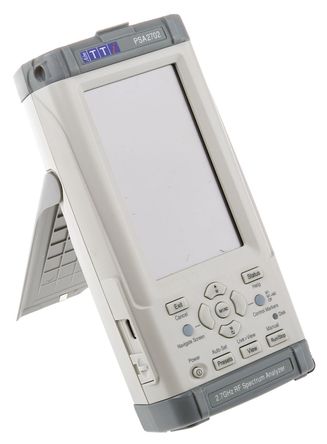

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PSA Series II is unlike any other RF spectrum analyzer. It builds upon the success of the PSA-T series in offering a lightweight and truly handheld instrument that incorporates an extensive feature set. An improved user interface is combined with many new hardware and software features and a ruggedized casing.
1MHz to 1300MHz or 2700MHz frequency range
Resolution bandwidths of 1MHz, 280kHz or 15kHz
-96dBm typical noise floor at -20dBm reference level
Measurement in dBm or dBìV, mV or ìW
Zero span mode with AM and FM audio demodulation
Trace modes of normal, peak hold and trace average
Live, View and Reference traces in contrasting colours
Twin markers with readout of absolute & difference values
Smart marker movement with selectable peak tracking
Frequency presets and independent state storage
Auto-find automatically sets sweep parameters for the highest signal found
Unlimited storage for waveforms, set-ups and screens
User assignable file names, file stamping from real-time clock
USB interfaces for Flash drives and PC connection
Comprehensive status and context sensitive help screens
More than 8 hours continuous operation from a charge
Smaller and lighter than other spectrum analyzers (weight only 0.56 kg)

Show

PSA2702 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Frequency Stability	±10 ppm
Number of Channels	1 Channel
Bandwidth	2700 MHz
Input Impedance	50 Ω
Operating Temperature (Max)	40 ℃
Operating Temperature (Min)	5 ℃
	Show
Size-Length	92 mm
Size-Width	92 mm
Size-Height	192 mm
Weight	560 g
RoHS	Non-Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
