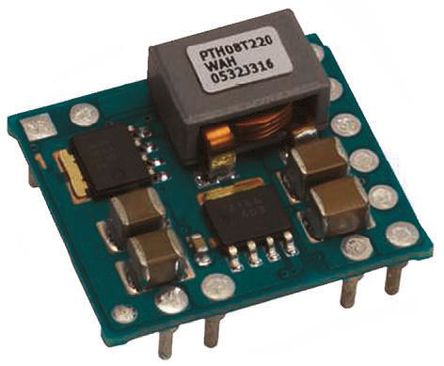

Image is for your reference only,please check specifications for details

PTH08T220WAZ - TI
Manufacturer:
TI
ManyChip's Part#:
MC22130596
Category:
DC to DC Converter, DC/DC Converter
Package:
SMD-11
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS PTH08T220WAZ Non Isolated POL DC-DC Converter, Adjustable, POLA, Surface Mount DIP, 88W, 690mV, 5.5V, 16A
Stock Locations:
Availability:
222 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 28.61

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PTH08T220WAZ is a 1-output 88W surface-mount non-isolated adjust Power Module with TurboTrans™. This module represents the 2nd generation of the popular PTH series power modules and include a reduced footprint and improved features. Operating from an input voltage range of 4.5 to 14V, the PTH08T220W requires a single resistor to set the output voltage to any value over the range, 0.69 to 5.5V. The wide input voltage range makes the PTH08T220W particularly suitable for advanced computing and server applications that utilize a loosely regulated 8 to 12V intermediate distribution bus. Additionally, the wide input voltage range increases design flexibility by supporting operation with tightly regulated 5, 8 or 12V intermediate bus architectures. The module incorporates a comprehensive list of features. Output over-current and over-temperature shutdown protects against most load faults. A differential remote sense ensures tight load regulation.
Output overcurrent protection (non-latching, auto-reset)
Pre-bias start-up
ON/OFF inhibit
Differential output voltage remote sense
Adjustable under-voltage lockout
POLA™ compatible
Designed to meet ultra-fast transient
Requirements up to 300A/µs
SmartSync technology
Auto-Track sequencing
High-performance, wide-output
±1.5% Total output voltage variation
Efficiencies up to 96%

Show

PTH08T220WAZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	11 Pin
Case/Package	SMD-11
Supply Voltage (DC)	5.00 V
Power Rating	88 W
Number of Outputs	1 Output
Input Voltage (DC)	4.50V ~ 14.0V
Output Voltage	0.69V ~ 5.5V
Output Current	16 A
Number of Regulated Outputs	1 Output
Topology	Buck
Input Voltage (Max)	14 V
Input Voltage (Min)	4.5 V
Input Voltage (DC Max)	14 V
Input Voltage (DC Min)	4.5 v
Output Voltage (Max)	5.5 V
Output Voltage (Min)	690 mV
Output Current (Max)	16 A
Input Power (Max)	88 W
Input Power (Max)	88 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	4.5V ~ 14V
	Show
Size-Length	51.94 mm
Size-Width	18.93 mm
Size-Height	9.09 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
