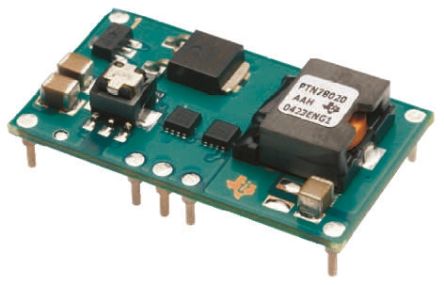

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PTN78020AAH is a 1-output 25W through hole-mount non-isolated adjustable positive-to-negative Voltage Regulator Module with wide negative output. The PTN78020A is a series of high-efficiency buck-boost-integrated switching regulators (ISR), that represent the third generation in the evolution of high-performance power modules designed for industrial use. The wide-input voltage range makes these modules suitable for a variety of applications that operate off 12, 24V and tightly-regulated 28VDC power. The PTN78020A is smaller and lighter than its predecessors and has either similar or improved electrical performance characteristics. The PTN78020A operates over an input voltage range of 9 to 29V and provides high-efficiency, positive-to-negative voltage conversion for loads of up to 4A. The output voltage is set using a single external resistor and may be adjusted to any value within the range, -15 to -3V.
Wide-input voltage
Wide-output voltage adjust
High efficiency (Up to 87%)
Output Current Limit
Over-temperature Shutdown
Under-voltage lockout

Show

PTN78020AAH Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	7 Pin
Case/Package	DIP-7
Supply Voltage (DC)	20.0 V
Power Rating	25.0 W
Number of Outputs	1 Output
Input Voltage (DC)	9.00V ~ 29.0V
Output Voltage	-15.0 V, -15.0 V (min)
Output Current	4 A
Number of Regulated Outputs	1 Output
Output Power	25 W
Switching Frequency	440kHz ~ 660kHz
Topology	Buck, Boost
Input Voltage (Max)	29 V
Input Voltage (Min)	9 V
Input Voltage (DC Max)	29 V
Input Voltage (DC Min)	9 v
Output Current (Max)	4 A
Input Power (Max)	25 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	9V ~ 26V
	Show
Size-Length	37.97 mm
Size-Width	22.1 mm
Size-Height	9 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
