PTN78060HAH - TI
Manufacturer:
TI
ManyChip's Part#:
MC5947926
Category:
DC to DC Converter, DC/DC Converter
Package:
DIP-7
Datasheet:
Datasheet 3D Model
Description:

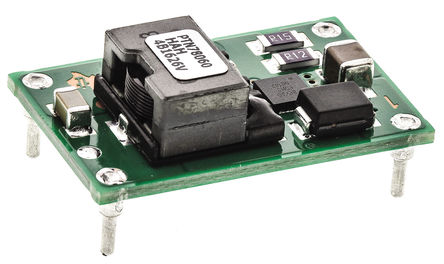

TEXAS INSTRUMENTS PTN78060HAH Non Isolated Board Mount DC-DC Converter, DIP, 45W, 11.85V, 22V, 3A, 15V
Stock Locations:
Availability:
721 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 34.04

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PTN78060HAH is a 1-output 45W through-hole wide-input Adjustable Switching Regulator provides high-efficiency, step-down voltage conversion for loads of up to 3A. The PTN78060 is a series of high-efficiency, step-down integrated switching regulator (ISR), that represent the third generation in the evolution. The PTN78060 has either similar or improved electrical performance characteristics. The output voltage can be set to any value over a wide adjustment range using a single external resistor. The PTN78060 has under-voltage lockout, an integral ON/OFF inhibit and includes an output current limit and over-temperature protection. It is well suited to a wide variety of general-purpose applications that operates off 22V power.
High efficiency
ON/OFF Inhibit
Under-voltage lockout
Output current limit
Over-temperature shutdown
-40 to 85°C Operating temperature range

Show

PTN78060HAH Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	7 Pin
Case/Package	DIP-7
Supply Voltage (DC)	20.0 V
Number of Outputs	1 Output
Input Voltage (DC)	7.00V ~ 36.0V
Output Voltage	11.85V ~ 22V
Output Current	3 A
Number of Regulated Outputs	1 Output
Output Power	45 W
Switching Frequency	440kHz ~ 660kHz
Topology	Buck
Input Voltage (Max)	36 V
Input Voltage (Min)	15 V
Input Voltage (DC Max)	36 V
Input Voltage (DC Min)	15 v
Output Voltage (Max)	22 V
Output Voltage (Min)	11.85 V
Output Current (Max)	3 A
Input Power (Max)	45 W
Input Power (Max)	45 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	15V ~ 36V
	Show
Size-Length	25.27 mm
Size-Width	15.75 mm
Size-Height	9 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
