Description

The PTVSxS1UR series unidirectional flat lead low-profile surface-mounted Transient Voltage Suppressor Diode designed for transient overvoltage protection. It is available in 3.3 to 64V reverse standoff voltage range (VRWM).
400W Rated peak pulse power (PPPM)
350W Rated peak pulse power (PPPM) for 3V3
0.001µA Reverse current (IRM)

Show

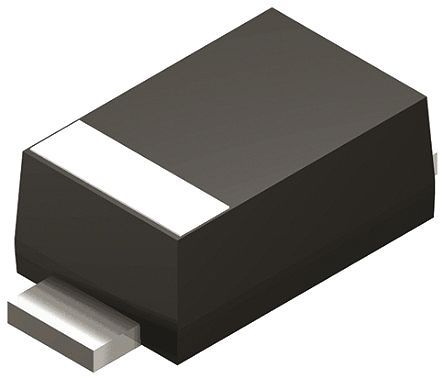

PTVS20VS1UR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123
Number of Circuits	1 Circuit
Number of Positions	2 Position
Clamping Voltage	32.4 V
Max Repetitive Reverse Voltage (Vrrm)	20V
Test Current	1 mA
Max Breakdown Voltage	24.5 V
Peak Pulse Power	400 W
Min Breakdown Voltage	22.2 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	2.8 mm
Size-Width	1.9 mm
Size-Height	1.1 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	PB free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
