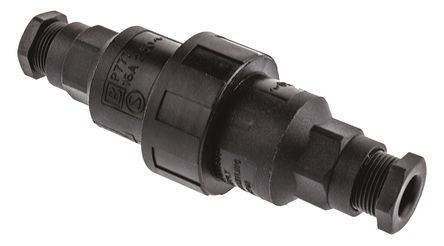

Image is for your reference only,please check specifications for details

PX0777 - Bulgin Components
Manufacturer:
Bulgin Components
ManyChip's Part#:
MC11052470
Category:
Circular Connector, Connector Circular
Datasheet:
Datasheet 3D Model
Description:
3Pole Cable Mount Mains Inline Connector,Cable Diameter 3.5 → 9mm Rated At 16A,250V ac
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

A threaded, coupling style connector for extending or repairing 3 core power cables. The two piece body is sealed to IP68, which protects against the effects of immersion. Supplied with instructions.

Show

PX0777 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Voltage Rating (AC)	250 V
Current Rating	16 A
Number of Rows	2 Row
Number of Circuits	3 Circuit
Flammability Rating	UL 94 HB
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-20 ℃
Voltage Rating	250 V
	Show
Size-Length	105 mm
Color	Black
Contact Material	Brass
Material	Nylon
Operating Temperature	-20℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
