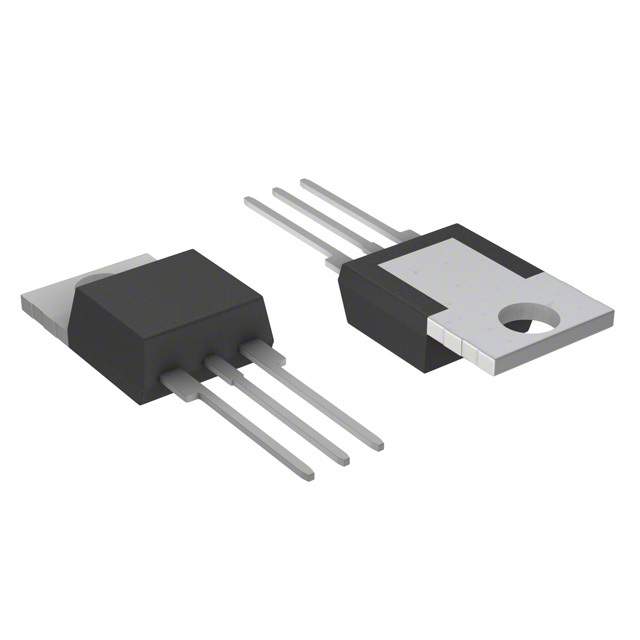

Image is for your reference only,please check specifications for details

Q4010LT - Littelfuse
Manufacturer:
Littelfuse
ManyChip's Part#:
MC80520000
Category:
TRIAC Diode, TRIAC
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
400V 10A 33/43V To220 400V 10A 33/43V To220 400V 10A 33/43V To220 400V 10A 33/43V To220
Stock Locations:
Availability:
195 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.06

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Description
Teccor’s Quadrac devices are triacs that include a diac trigger mounted inside the same package. This device, developed by Teccor, saves the user the expense and assembly time of buying a discrete diac and assembling in conjunction with a gated triac. Also, the alternistor Quadrac device (QxxxxLTH) eliminates the need for a snubber network.
The Quadrac device is a bidirectional AC switch and is gate controlled for either polarity of main terminal voltage. Its primary purpose is for AC switching and phase control applications such as speed controls, temperature modulation controls, and lighting controls where noise immunity is required.
Features
• RoHS Compliant
• Glass-passivated junctions
• Electrically-isolated package
• Internal trigger diac
• High surge capability — up to 200 A
• High voltage capability — 200 V to 600 V

Show

Q4010LT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	400 V
Current Rating	10 A
Number of Positions	3 Position
Holding Current	60.0 mA
Holding Current (Max)	60 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17
