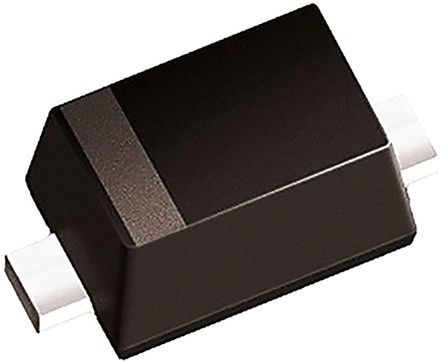

RBE05SM20AT2R Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-523
Forward Voltage	530mV @500mA
Forward Current	500 mA
Max Forward Surge Current (Ifsm)	1 A
Maximum Forward Voltage (Max)	530 mV
Forward Current (Max)	500 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Length	1.2 mm
Size-Width	0.8 mm
Size-Height	0.6 mm
Product Lifecycle Status	Not Recommended
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
