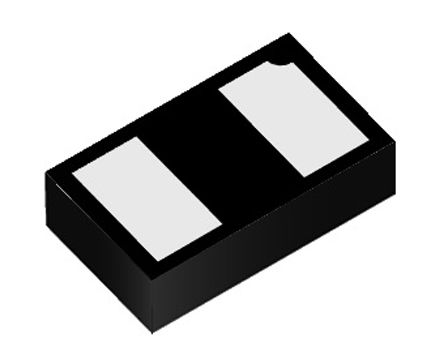

Image is for your reference only,please check specifications for details
- RCLAMP0521PATCT - Semtech Corporation
-
Manufacturer:Semtech Corporation
-
ManyChip's Part#:MC7562529
-
Category:TVS Diode
-
Package:0402
-
Datasheet:Datasheet 3D Model
-
Description:TVS Diode, RailClamp Series, Bidirectional, 5V, 25V, SLP1006P2, 2Pins
-
Stock Locations:
-
Availability:9,450 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.05
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- RCLAMP Series 0.5 pF Sinlge Line ESD Suppressor - SLP1006P2
RCLAMP0521PATCT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 1005 |
| Case/Package | 0402 |
| Operating Voltage | 5 V |
| Capacitance | 0.5 pF |
| Power Rating | 100 W |
| Breakdown Voltage | 6 V |
| Number of Positions | 2 Position |
| Clamping Voltage | 25 V |
| Test Current | 1 mA |
| Max Breakdown Voltage | 11 V |
| Peak Pulse Power | 100 W |
| Min Breakdown Voltage | 6 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Size-Length | 2.6 mm |
| Size-Width | 1.1 mm |
| Size-Height | 0.6 mm |
| Operating Temperature | -55℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
