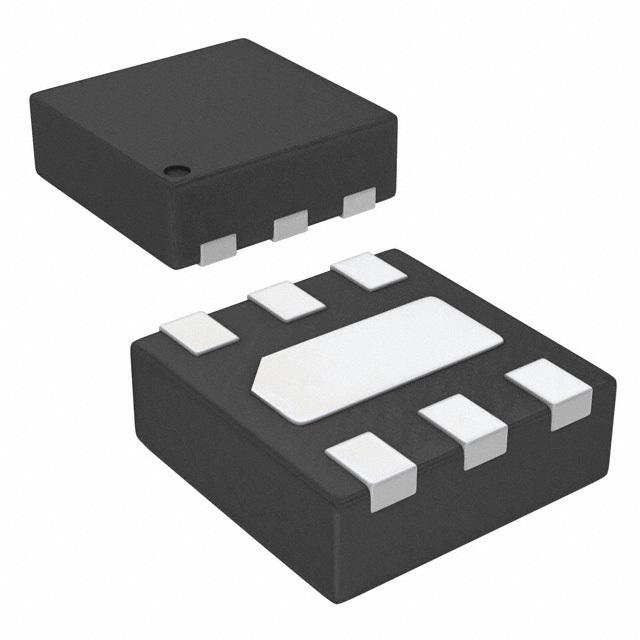

Image is for your reference only,please check specifications for details
- RCLAMP3654PATCT - Semtech Corporation
-
Manufacturer:Semtech Corporation
-
ManyChip's Part#:MC11434032
-
Category:TVS Diode
-
Package:UFDFN-6
-
Datasheet:Datasheet 3D Model
-
Description:SEMTECH RCLAMP3654PATCT TVS Diode, RailClamp Series, Unidirectional, 5.5V, 30V, SLP1616P6, 6Pins
-
Stock Locations:
-
Availability:289 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.54
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 30V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount SLP1616P6 (1.6x1.6)
RCLAMP3654PATCT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | UFDFN-6 |
| Breakdown Voltage | 6.5 V |
| Number of Channels | 3 Channel |
| Number of Positions | 6 Position |
| Power Dissipation | 100 W |
| Clamping Voltage | 30 V |
| Max Breakdown Voltage | 10 V |
| Peak Pulse Power | 100 W |
| Min Breakdown Voltage | 6.5 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Show | |
| Size-Height | 0.55 mm |
| Operating Temperature | -55℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
