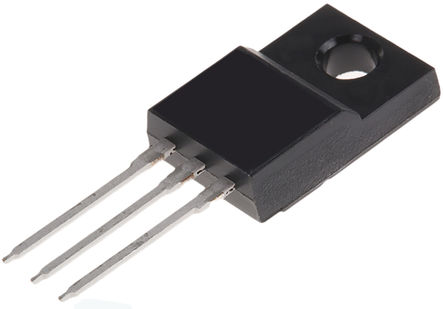

Image is for your reference only,please check specifications for details

RF2001T3D - ROHM Semiconductor
Manufacturer:
ROHM Semiconductor
ManyChip's Part#:
MC4127340
Category:
Diode Array, TVS Diode Array
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
RF2001 Series 200V 20A 25ns Flange Mount Fast Recovery Diode - TO-220
Stock Locations:
Availability:
111 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.25

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

RF2001T3D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	300 V
Current Rating	20.0 A
Forward Voltage	1.3V @10A
Reverse recovery time	25 ns
Max Forward Surge Current (Ifsm)	100 A
Maximum Forward Voltage (Max)	1.3V @10A
Forward Current (Max)	20 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Length	10 mm
Size-Width	4.5 mm
Size-Height	15 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
