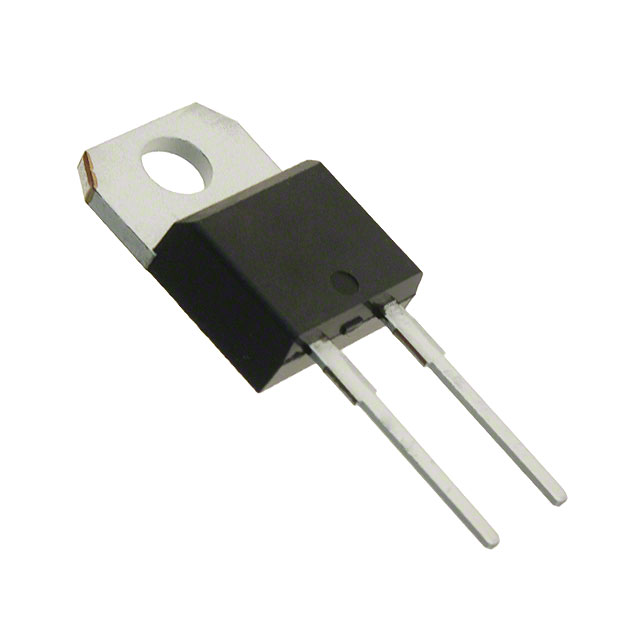

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

RFUS20TF6S Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Forward Voltage	2.8V @20A
Thermal Resistance	2℃/W (RθJC)
Reverse recovery time	35 ns
Max Repetitive Reverse Voltage (Vrrm)	600V
Forward Current	20 A
Max Reverse Leakage Current (Ir)	0.01mA
Maximum Forward Voltage (Max)	2.8V @20A
Forward Current (Max)	20 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	150℃ (Max)
	Show
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Not For New Designs
Packaging	Tube
Minimum Packing Quantity	1000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
