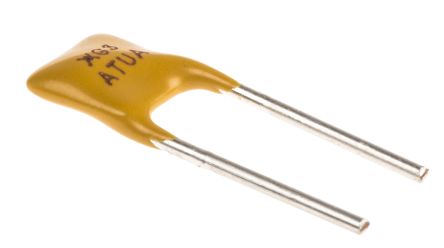

Image is for your reference only,please check specifications for details
- RGEF300 - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC14560650
-
Category:Fuse
-
Package:Through Hole
-
Datasheet:Datasheet 3D Model
-
Description:PTC Resettable Fuse 3A(hold) 5.1A(trip) 16VDC 100A 2.3W 1s 0.038Ω Radial 7.1 X 3 X 11mm Bag
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 18/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Polymeric PTC Resettable Fuse 16V 3A Ih Through Hole Radial, Disc
RGEF300 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | Through Hole |
| Voltage Rating (DC) | 16.0 V |
| Operating Voltage | 16 V |
| Time to Trip | 1 s |
| Power Dissipation | 2.3 W |
| Resistance | 0.0975 Ω |
| Holding Current | 3 A |
| Trip Current | 5.1 A |
| Current Rating (Max) | 100 A |
| Holding Current (Max) | 3 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 16 VDC |
| Voltage Rating | 16 VDC |
| Show | |
| Size-Length | 11 mm |
| Size-Width | 7.1 mm |
| Size-Height | 11 mm |
| Cord Length | 7.6 m |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
