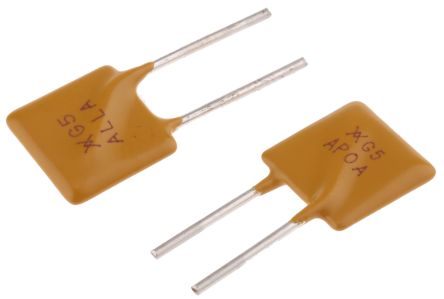

Image is for your reference only,please check specifications for details
- RGEF500 - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC8535633
-
Category:Fuse
-
Package:Through Hole
-
Datasheet:Datasheet 3D Model
-
Description:PTC Resettable Fuse 5A(hold) 8.5A(trip) 16VDC 100A 2.6W 2s 0.015Ω Radial 10.4 X 3 X 14.3mm Bag
-
Stock Locations:
-
Availability:2 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.83
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Polymeric PTC Resettable Fuse 16V 5A Ih Through Hole Radial, Disc
RGEF500 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | Through Hole |
| Voltage Rating (DC) | 16.0 V |
| Operating Voltage | 16.0 V |
| Time to Trip | 2 s |
| Power Dissipation | 2.6 W |
| Resistance | 34.0 mΩ |
| Holding Current | 5 A |
| Trip Current | 8.5 A |
| Current Rating (Max) | 100 A |
| Holding Current (Max) | 5 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 16 VDC |
| Voltage Rating | 16 V |
| Show | |
| Size-Height | 14.3 mm |
| Cord Length | 7.6 m |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Discontinued at Digi-Key |
| Packaging | Bag |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
