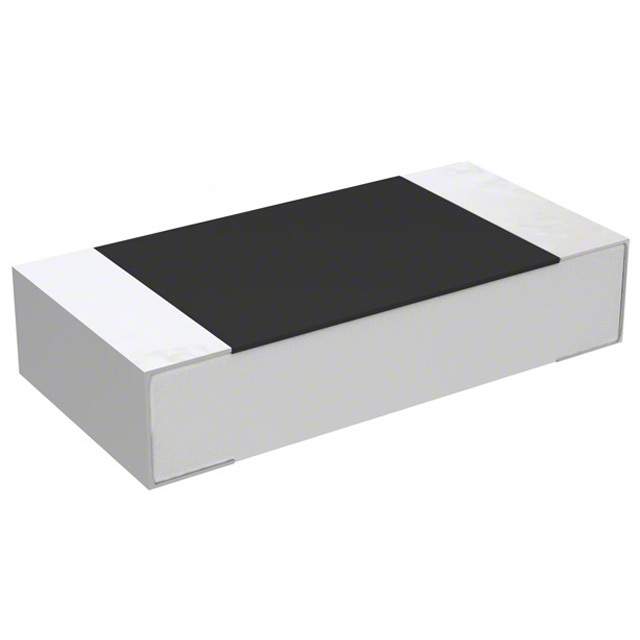

Image is for your reference only,please check specifications for details

RP73D2B10RBTG - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC48294058
Category:
Chip SMD Resistor
Package:
1206
Datasheet:
Datasheet 3D Model
Description:
TE CONNECTIVITY / HOLSWORTHY RP73D2B10RBTG SMD Chip Resistor, Thin Film, 10Ω, 200V, 1206 [3216 Metric], 0.25W(1/4W), ± 0.1%, RN73 Series
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The RP73D2B10RBTG is a 10R 250mW surface-mounting fixed standard Precision Chip Resistor offers increased power dissipation, higher temperature capabilities and increased working voltages compared to the standard RN73 series. The resistor is made up of thin metal film onto high grade alumina element, ±0.1% tolerance. It is protected with three complete printed layers.
Stable high frequency performance
Electroplated 100% matte Sn solder terminal
Accurate and uniform physical dimensions to reduce placement problems
-55 to 155°C Temperature range

Show

RP73D2B10RBTG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	3216
Case/Package	1206
Voltage Rating (DC)	200 V
Capacitance Tolerance	±0.1 %
Power Rating	250 mW
Part Family	RP73/RP73P
Resistance	10 Ω
Resistance Tolerance	±0.1 %
Operating Temperature (Max)	155 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	200 V
	Show
Size-Length	3.05 mm
Size-Width	1.55 mm
Size-Height	0.55 mm
Operating Temperature	-55℃ ~ 155℃
Temperature Coefficient	±15 ppm/℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
Minimum Packing Quantity	250
RoHS	RoHS Compliant
Lead-Free Status
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
