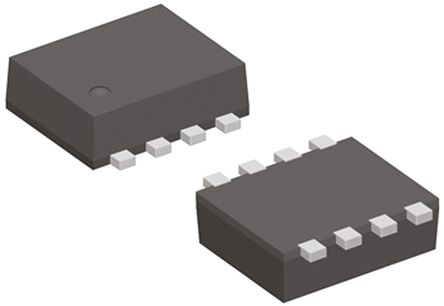

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

RQ1A070ZPTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SMD-8
Polarity	P-CH
Power Dissipation	700mW (Ta)
Drain to Source Voltage (Vds)	12 V
Continuous Drain Current (Ids)	7A
Input Capacitance (Ciss)	7400pF @6V(Vds)
Input Power (Max)	1.5 W
Operating Temperature (Max)	150 ℃
Power Dissipation (Max)	700mW (Ta)
	Show
Size-Length	3 mm
Size-Width	2.8 mm
Size-Height	0.8 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Not For New Designs
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
