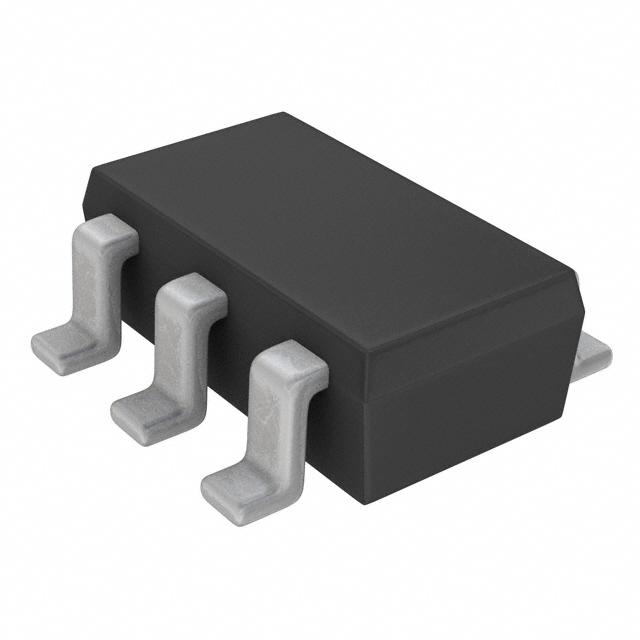

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- P-Channel 30V 3A (Ta) 1.25W (Ta) Surface Mount TSMT6 (SC-95)
RSQ030P03TR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | TSOT-23-6 |
| Voltage Rating (DC) | -30.0 V |
| Current Rating | -30.0 A |
| Drain to Source Resistance (on) (Rds) | 0.1 Ω |
| Polarity | P-Channel |
| Power Dissipation | 1.25W (Ta) |
| Drain to Source Voltage (Vds) | 30 V |
| Continuous Drain Current (Ids) | 3.00 A |
| Rise Time | 13 ns |
| Input Capacitance (Ciss) | 440pF @10V(Vds) |
| Input Power (Max) | 1.25 W |
| Fall Time | 12 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 1.25W (Ta) |
| Show | |
| Material | Silicon |
| Operating Temperature | 150℃ (TJ) |
| Product Lifecycle Status | Discontinued at Digi-Key |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
