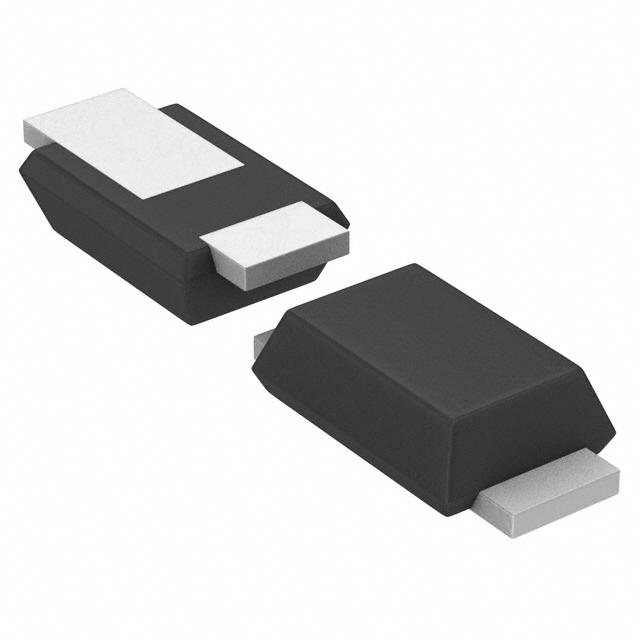

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

RSX201VAM30TR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SMD-2
Number of Positions	2 Position
Forward Voltage	420mV @1A
Forward Current	1.5 A
Max Forward Surge Current (Ifsm)	8 A
Maximum Forward Voltage (Max)	460 mV
Operating Temperature (Max)	125 ℃
Junction Temperature	150℃ (Max)
	Show
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
