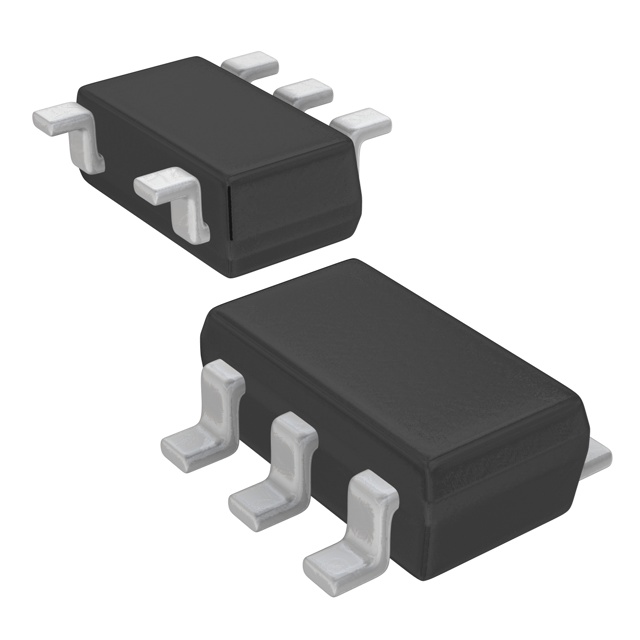

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- General Description
- The RT9701 is an integrated 100mΩ power switch for self-powered and bus-powered Universal Series Bus (USB) applications. A built-in charge pump is used to drive the N-Channel MOSFET that is free of parasitic body diode to eliminate any reversed current flow across the switch when it is powered off. Its low quiescent current (23μA) and small package (SOT-23-5) is particularly suitable in battery-powered portable equipment.
- Several protection functions include soft start to limit inrush current during plug-in, current limiting at 1.5A to meet USB power requirement, and thermal shutdown to protect damage under over current conditions.
- Features
- • 100mΩ Typ. High-Side NMOSFET (SOT-23-5)
- • Guaranteed 1.1A Continuous Current
- • 1.5A Current Limit
- • Small SOT-23-5 Package Minimizes Board Space
- • Soft Start
- • Thermal Protection
- • Low 23μA Supply Current
- • Wide Input Voltage Range : 2.2V to 6V
- • UL Approved - #E219878
- • RoHS Compliant and 100% Lead (Pb)-Free
- Applications
- • Battery-Powered Equipment
- • Motherboard USB Power Switch
- • USB Device Power Switch
- • Hot-Plug Power Supplies
- • Battery-Charger Circuits
RT9701GB Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 5 Pin |
| Case/Package | SOT-23-5 |
| Number of Outputs | 1 Output |
| Rise Time | 400 µs |
| Input Voltage (Max) | 6 V |
| Input Voltage (Min) | 2.2 V |
| Output Current (Max) | 1.1 A |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Power Dissipation (Max) | 250 mW |
| Input Voltage | 2.2V ~ 6V |
| Show | |
| Operating Temperature | -20℃ ~ 100℃ (TJ) |
| Product Lifecycle Status | Discontinued at Digi-Key |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
