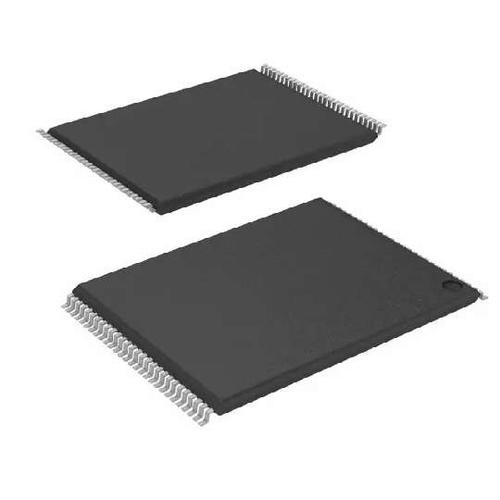

Image is for your reference only,please check specifications for details

S29GL128P10TFI010 - Spansion
Manufacturer:
Spansion
ManyChip's Part#:
MC15741200
Category:
Flash Memory, Flash
Package:
TSOP-56
Datasheet:
Datasheet 3D Model
Description:
NOR Flash Parallel 3V/3.3V 128Mbit 16M/8M x 8Bit/16Bit 100ns 56Pin TSOP Tray
Stock Locations:
Availability:
456 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.57

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The S29GL128P10TFI010 is a 128MB page mode Flash Memory featuring 90nm MirrorBit process technology. This device offers a fast page access time of 100ns with a corresponding random access time as fast as 90ns. It features a write buffer that allows a maximum of 32 words/64 bytes to be programmed in one operation, resulting in faster effective programming time than standard programming algorithms. This makes the device ideal for todays eMBedded applications that require higher density, better performance and lower power consumption.
Highest address sector protected
Enhanced Versatile I/O™ control
Secured silicon sector region
Can be programmed and locked at the factory or by the customer
100000 Erase cycles per sector typical
20 Years data retention typical
Suspend and resume commands for program and erase operations
Write operation status bits indicate program and erase operation completion
Unlock bypass program command - Reduces programming time
Support for CFI (Common Flash Interface)
Persistent and password methods of advanced sector protection
WA#/ACC input - Protects first or last sector regardless of sector protection settings
Hardware reset input (RESET#) resets device
Ready/busy# output (RY/BY#) detects program or erase cycle completion

Show

S29GL128P10TFI010 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	56 Pin
Case/Package	TSOP-56
Supply Voltage (DC)	2.70V (min)
Operating Voltage	2.7V ~ 3.6V
Supply Current	110 mA
Number of Positions	56 Position
Access Time	100 ns
Memory Size	16000000 B
Access Time(Max)	100 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V, 3.3V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.7 V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HK STC License	NLR
