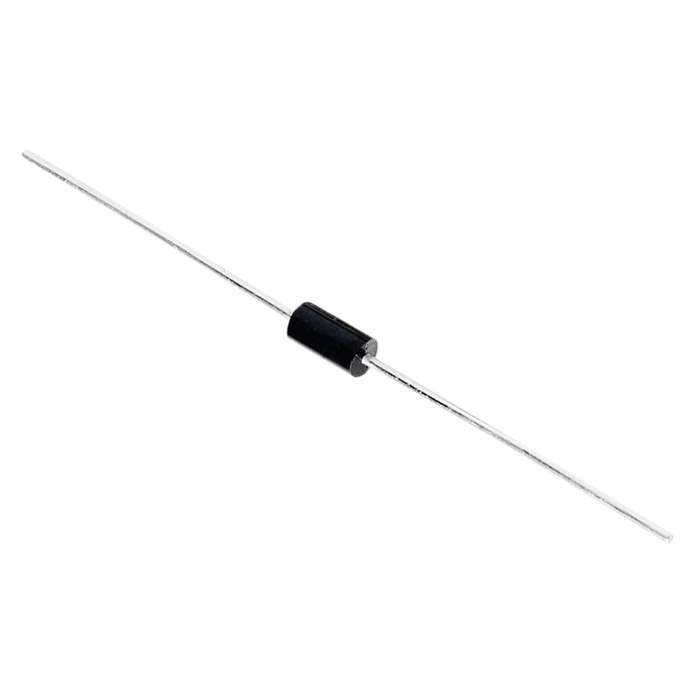

Image is for your reference only,please check specifications for details
- SA20A - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC18533336
-
Category:TVS Diode
-
Package:DO-204AC
-
Datasheet:Datasheet 3D Model
-
Description:Diode; 15.7A (Max.); 22.20V (Min.) @ 1mA; 3uA (Max.) @ 20V; 70A (Max.)
-
Stock Locations:
-
Availability:4,832 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.09
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- SA Series Silicon Avalanche Diodes
- * Glass passivated chip junction
- * Excellent clamping capability
- * Low incremental surge resistance
- The SA Series is designed specifically to protect sensitive electronics equipment from voltage transients induced by lightning and other transient voltage events. These devices are ideal for the protection of I/O interfaces, Vcc bus and other vulnerable circuits used in computer and consumer electronic applications.
SA20A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | DO-204AC |
| Voltage Rating (DC) | 20.0 V |
| Operating Voltage | 20 V |
| Current Rating | 15.7 A |
| Power Rating | 500 W |
| Breakdown Voltage | 24.5 V |
| Number of Circuits | 1 Circuit |
| Number of Positions | 2 Position |
| Power Dissipation | 500 W |
| Clamping Voltage | 32.4 V |
| Test Current | 1 mA |
| Max Breakdown Voltage | 24.5 V |
| Forward Current | 15.7 A |
| Peak Pulse Power | 500 W |
| Min Breakdown Voltage | 22.2 V |
| Reverse Breakdown Voltage | 22.2 V |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Junction Temperature | -65℃ ~ 175℃ |
| Junction Temperature (Max) | 175 ℃ |
| Show | |
| Size-Length | 7.6 mm |
| Size-Diameter | 3.60 mm |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
