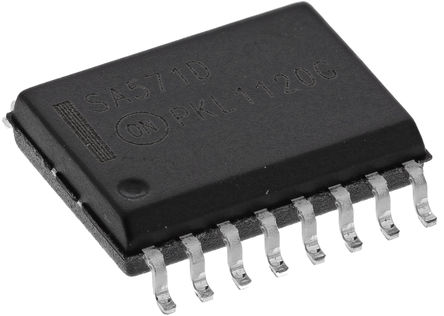

Image is for your reference only,please check specifications for details

SA571DG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC36183972
Category:
Active Chip
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR SA571DG Audio Control, Compandor, 6V to 18V, SOIC, 16Pins, -40℃
Stock Locations:
Availability:
124 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.55

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SA571DG is a Versatile Dual Gain Control Circuit in which either channel may be used as a dynamic range compressor or expander. Each channel has a full-wave rectifier to detect the average value of the signal, a linearized temperature-compensated variable gain cell and an operational amplifier.
Temperature compensated
Distortion may be trimmed out
Dynamic noise reduction systems
Voltage controlled amplifier

Show

SA571DG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	15.0 V
Halogen Free Status	Halogen Free
Supply Current	4.20 mA
Number of Channels	2 Channel
Number of Positions	16 Position
Output Power	400 mW
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	6V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	6 V
	Show
Size-Length	10.45 mm
Size-Width	7.6 mm
Size-Height	2.4 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
