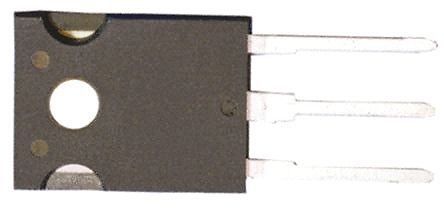

Image is for your reference only,please check specifications for details

SCS240AE2C - ROHM Semiconductor
Manufacturer:
ROHM Semiconductor
ManyChip's Part#:
MC29940140
Category:
Schottky Diode
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
Silicon Carbide Schottky Diode, Barrier, 650V Series, Dual Common Cathode, 650V, 40A, 31NC
Stock Locations:
Availability:
232 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 19.4

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Diode Array 1 Pair Common Cathode Silicon Carbide Schottky 650V 20A (DC) Through Hole TO-247-3

Show

SCS240AE2C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Forward Voltage	1.55V @20A
Power Dissipation	270 W
Reverse recovery time	0 ns
Forward Current	40 A
Max Forward Surge Current (Ifsm)	530 A
Maximum Forward Voltage (Max)	1.55 V
Forward Current (Max)	40 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	175℃ (Max)
Junction Temperature (Max)	175 ℃
Power Dissipation (Max)	270000 mW
	Show
Size-Length	15.9 mm
Size-Width	5.03 mm
Size-Height	20.95 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
