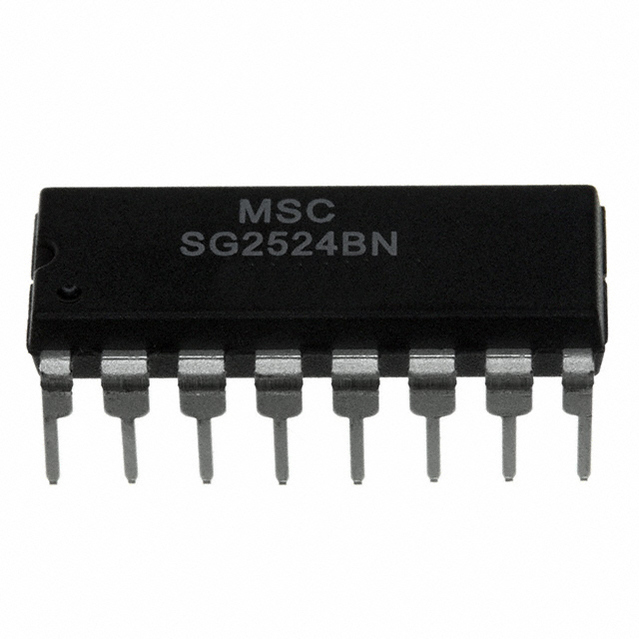

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The SG1524B is a pulse width modulator for switching power supplies which features improved performance over industry standards like the SG1524. A direct pin-for-pin replacement for the earlier device, it combines advanced processing techniques and circuit design to provide improved reference accuracy, and extended common mode range at the error amplifier and current limit inputs. A DC-coupled flip-flop eliminates triggering and glitch problems, and a PWM data latch prevents edge oscillations. The circuit incorporates true digital shutdown for high speed response, while an undervoltage lockout circuit prevents spurious outputs when the supply voltage is too low for stable operation.
- FEATURES
- • 7V to 40V operation
- • 5V reference trimmed to ±1%
- • 100Hz to 400KHz oscillator range
- • Excellent external sync capability
- • Dual 100mA output transistors
- • Wide current limit common mode range
- • DC-coupled toggle flip-flop
- • PWM data latch
- • Undervoltage lockout
- • Full double-pulse suppression logic
- • 60V output collectors
SG2524BN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 16 Pin |
| Case/Package | DIP-16 |
| Supply Voltage (DC) | 40.0V (max) |
| Number of Outputs | 2 Output |
| Output Voltage | 19 V |
| Number of Channels | 2 Channel |
| Quiescent Current | 8.00 mA |
| Rise Time | 200 ns |
| Switching Frequency | 50Hz ~ 600kHz |
| Duty Cycle | 49 % |
| Maximum Duty Cycle | 49 % |
| Fall Time | 100 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Supply Voltage | 7V ~ 40V |
| Show | |
| Operating Temperature | -25℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
