Description

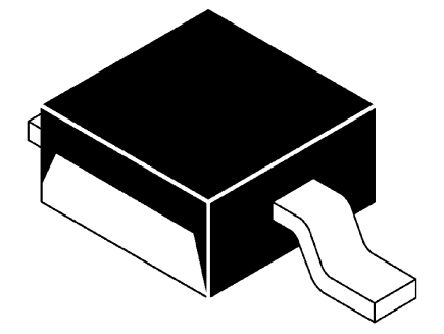

The SM2T3V3A is a low voltage Transil™ TVS Diode designed specifically for portable equipment and miniaturized electronic devices subject to ESD transient over-voltages. Its low stand-off voltage makes it suitable for low voltage applications very sensitive to EOS and ESD events. It provides high overvoltage protection by clamping action.
Unidirectional Transil diode
200W (10/1000µs) High peak pulse power
Low clamping factor VCL/VBR
Fast response time

Show

SM2T3V3A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-216AA-2
Operating Voltage	3.3 V
Power Rating	200 W
Breakdown Voltage	3.6 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	2.50 W
Clamping Voltage	6.8 V
Max Repetitive Reverse Voltage (Vrrm)	3.3V
Test Current	1 mA
Max Breakdown Voltage	3.6 V
Peak Pulse Power	200 W
Min Breakdown Voltage	3.6 V
Reverse Breakdown Voltage	3.6 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	150 ℃
	Show
Size-Length	2.05 mm
Size-Width	2.05 mm
Size-Height	1.15 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
