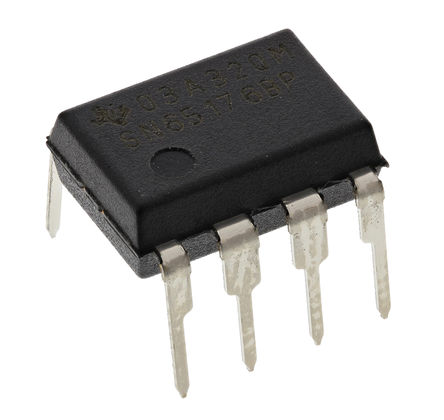

Image is for your reference only,please check specifications for details
- SN65176BP - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC1138440
-
Category:Interface IC, Interface Controller
-
Package:PDIP-8
-
Datasheet:Datasheet 3D Model
-
Description:RS-485 Differential Bus Transceiver Single Transmitter/Receiver RS-422/RS-485 8Pin PDIP Tube
-
Stock Locations:
-
Availability:48 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.58
Updated at 25/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SN65176BP is a Differential Bus Transceiver designed for bidirectional data communication on multipoint bus transmission lines. It is designed for balanced transmission lines and meets ANSI standards TIA/EIA-422-B and TIA/EIA-485-A and ITU recommendations V.11 and X.27. The SN65176B device combines a 3-state differential line driver and a differential input line receiver, both of which operate from a single 5V power supply. The driver and receiver have active-high and active-low enables, respectively, that can be connected together externally to function as a direction control. The driver differential outputs and the receiver differential inputs are connected internally to form differential input/output (I/O) bus ports that are designed to offer minimum loading to the bus when the driver is disabled or VCC=0. This port features wide positive and negative common-mode voltage ranges, making the device suitable for party-line applications.
- 3-state driver and receiver outputs
- Individual driver and receiver enables
- Wide positive and negative input/output bus voltage ranges
- Thermal shutdown protection
- Driver positive and negative current limiting
- Designed for multipoint transmission on long bus lines in noisy environments
- Operate from single 5V supply
- ±60mA Maximum driver output capability
- 12kR Minimum receiver input impedance
- ±200mV Receiver input sensitivity
- 50mV Typical receiver input hysteresis
- 150°C Operating virtual junction temperature
- Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
SN65176BP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | PDIP-8 |
| Supply Voltage (DC) | 5.00 V |
| Supply Current | 70 mA |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Data Rate | 10.0 Mbps |
| Drivers Per Package | 1 |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 4.75V ~ 5.25V |
| Supply Voltage (Max) | 5.25 V |
| Supply Voltage (Min) | 4.75 V |
| Show | |
| Size-Length | 9.81 mm |
| Size-Width | 6.35 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
