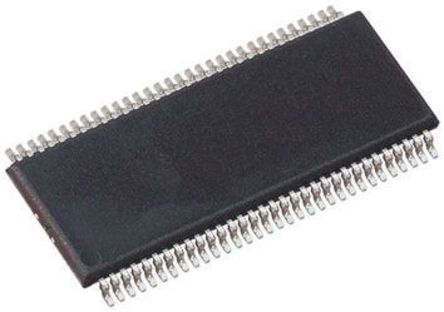

Image is for your reference only,please check specifications for details
- SN65LVDM1677DGG - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC8726211
-
Category:Interface IC, Interface Controller
-
Package:TSSOP-64
-
Datasheet:Datasheet 3D Model
-
Description:LVDS Driver/Receiver 650Mbps 0.454V 64Pin TSSOP Tube
-
Stock Locations:
-
Availability:76 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.61
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SN65LVDM1676 and SN65LVDM1677 (integrated termination) are sixteen differential line transmitters or receivers (tranceivers) that use low-voltage differential signaling (LVDS) to achieve signaling rates up to 200 Mbps per transceiver configured as a receiver and up to 650 Mbps per transceiver configured as a transmitter. These products are similar to TIA/EIA-644 standard compliant devices (SN65LVDS) counterparts except that the output current of the drivers are doubled. This modification provides a minimum differential output voltage magnitude of 247 mV into a 50- load and allows double-terminated lines and half-duplex operation. The receivers detect a voltage difference of 100 mV with up to 1 V of ground potential difference between a transmitter and receiver.
- The intended application of this device and signaling technique is for point-to-point baseband data transmission over controlled impedance media of approximately 100 . The transmission media may be printed-circuit board traces, backplanes, or cables. The large number of transceivers integrated into the same substrate along with the low pulse skew of balanced signaling, allows extremely precise timing alignment of clock and data for synchronous parallel data transfers. (Note: The ultimate rate and distance of data transfer is dependent upon the attenuation characteristics of the media, the noise coupling to the environment, and other system characteristics.)
- The SN65LVDM1676 and SN65LVDM1677 are characterized for operation from -40°C to 85°C.
SN65LVDM1677DGG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 64 Pin |
| Case/Package | TSSOP-64 |
| Supply Voltage (DC) | 3.00V (min) |
| Supply Current | 175 mA |
| Number of Circuits | 16 Circuit |
| Number of Positions | 64 Position |
| Input Current | 175 mA |
| Power Dissipation | 2094 W |
| Data Rate | 650 Mbps |
| Input Current (Min) | 20 μA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 2094 mW |
| Supply Voltage | 3V ~ 3.6V |
| Supply Voltage (Max) | 3.3 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 17 mm |
| Size-Width | 6.1 mm |
| Size-Height | 1.15 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
| HK STC License | NLR |
