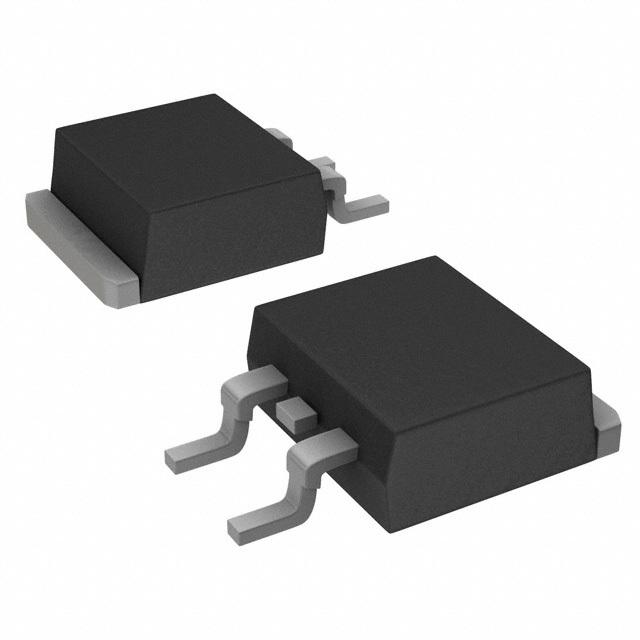

Image is for your reference only,please check specifications for details

MBRB2060CTG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC11774733
Category:
Schottky Diode
Package:
TO-263-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MBRB2060CTG Schottky Rectifier, 60V, 20A, Dual Common Cathode, TO-263, 3Pins, 950mV
Stock Locations:
Availability:
215 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.61

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MBRB2060CTG is a SWITCHMODE™ D²PAK surface-mount Power Rectifier with moulded epoxy case. This state-of-the-art device employs the use of the Schottky barrier principle with a platinum barrier metal.
All external surfaces corrosion-resistant
Centre-tap configuration
Guard-ring for stress protection
UL94V-0 Flammability rating
Short heat-sink tab manufactured - not sheared
Low forward voltage

Show

MBRB2060CTG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Voltage Rating (DC)	60.0 V
Current Rating	20.0 A
Halogen Free Status	Halogen Free
Number of Positions	3 Position
Forward Voltage	0.95 V
Forward Current	20 A
Max Forward Surge Current (Ifsm)	150 A
Maximum Forward Voltage (Max)	950 mV
Forward Current (Max)	20000 mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	175 ℃
	Show
Size-Length	10.29 mm
Size-Width	9.65 mm
Size-Height	4.83 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
