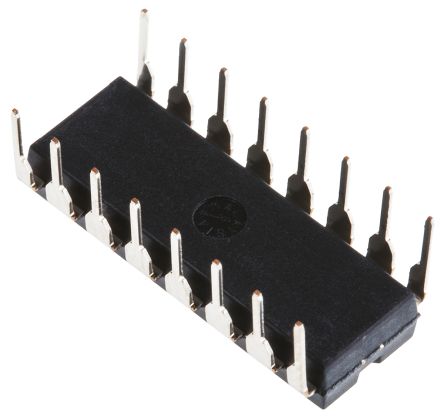

Image is for your reference only,please check specifications for details

SN74ALS138AN - TI
Manufacturer:
TI
ManyChip's Part#:
MC6999993
Category:
Logic Controller, Logic IC
Package:
PDIP-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS SN74ALS138AN Decoder / Demultiplexer, ALS Family, 1 Gate, 3Input, 8 Output, 8mA, 4.5V to 5.5V, DIP-16
Stock Locations:
Availability:
1,145 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.31

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN74ALS138AN is a 3-to-8 Decoder/Demultiplexer designed for high-performance memory-decoding or data-routing applications requiring very short propagation delay times. In high-performance systems, these devices can be used to minimize the effects of system decoding. When employed with high-speed memories with a fast enable circuit, the delay times of the decoder and the enable time of the memory are usually less than the typical access time of the memory. The effective system delay introduced by the Schottky-clamped system decoder is negligible. The conditions at the binary-select inputs and the three enable (G1, G2A\ and G2B\\) inputs select one of eight output lines. Two active-low and one active-high enable inputs reduce the need for external gates or inverters when expanding. A 24-line decoder can be implemented without external inverters and a 32-line decoder requires only one inverter. An enable input can be used as a data input for demultiplexing applications.
Designed specifically for high-speed memory decoders and data transmission systems
Incorporate three enable inputs to simplify cascading and/or data reception

Show

SN74ALS138AN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	PDIP-16
Supply Voltage (DC)	4.50V ~ 5.50V
Number of Outputs	8 Output
Number of Circuits	1 Circuit
Number of Positions	16 Position
Number of Bits	8 Bit
Voltage Nodes	5.00 V
Number of Gates	1 Gate
Bandwidth	75.0 MHz
Output Current Drive	-50.0 µA
Number of Inputs	3 Input
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
