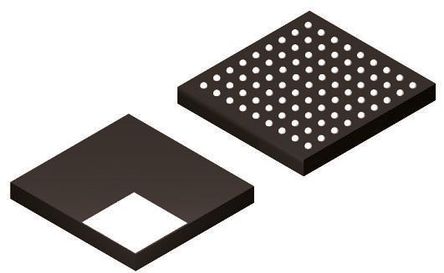

Image is for your reference only,please check specifications for details

SN74AVC24T245ZRGR - TI
Manufacturer:
TI
ManyChip's Part#:
MC30208437
Category:
Logic Controller, Logic IC
Package:
BGA-83
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS SN74AVC24T245ZRGR Bus Transceiver, AVC Family, 24Input, 12mA, 2.7ns, 1.2V to 3.6V, BGA-83
Stock Locations:
Availability:
1,160 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.39

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Control Inputs VIH/VIL Levels Are Referenced to VCCA Voltage * VCC Isolation Feature — If Either VCC Input Is at GND, All Outputs Are in the High-Impedance State * Overvoltage-Tolerant Inputs/Outputs Allow Mixed-Voltage-Mode Data Communications * Fully Configurable Dual-Rail Design Allows Each Port to Operate Over Full 1.2-V to 3.6-V Power-Supply Range * Ioff Supports Partial-Power-Down Mode Operation * I/Os Are 4.6-V Tolerant * Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II * ESD Protection Exceeds JESD 22 * 8000-V Human-Body Model (A114-A) * 200-V Machine Model (A115-A) * 1000-V Charged-Device Model (C101)

Show

SN74AVC24T245ZRGR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	83 Pin
Case/Package	BGA-83
Supply Voltage (DC)	1.20V (min)
Output Current	12 mA
Number of Circuits	6 Circuit
Number of Channels	24 Channel
Number of Bits	24 Bit
Propagation Delay Max (tpd)	2.70 ns
Number of Inputs	24 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of Output Channels	4 Channel
Supply Voltage	1.2V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.2 V
	Show
Size-Length	10.1 mm
Size-Width	4.6 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
