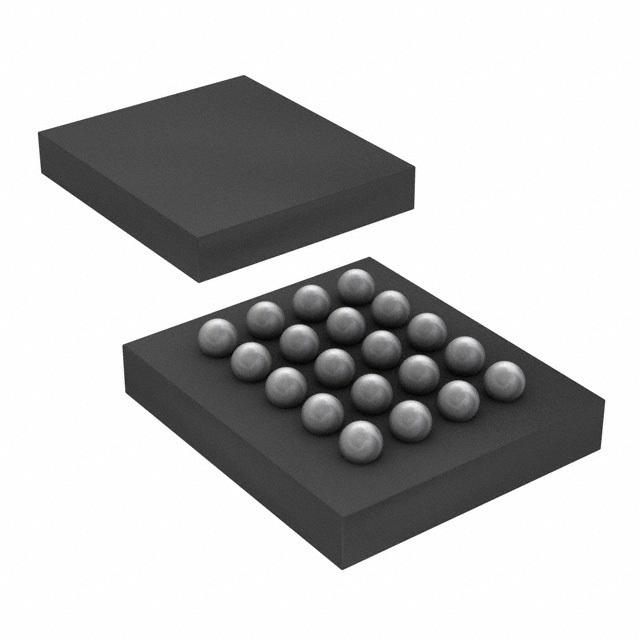

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Voltage Level Translator Bidirectional 1 Circuit 4 Channel 20-BGA Microstar Junior (2.5x3.0)

Show

SN74AVCA406LZXYR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	BGA-20
Supply Voltage (DC)	-500 mV to 4.60 V
Number of Circuits	1 Circuit
Number of Bits	4 Bit
Voltage Nodes	3.30 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of Output Channels	1 Channel
Supply Voltage	1.2V ~ 3.6V
Supply Voltage (Max)	4.6 V
Supply Voltage (Min)	1.2 V
	Show
Size-Height	0.36 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
