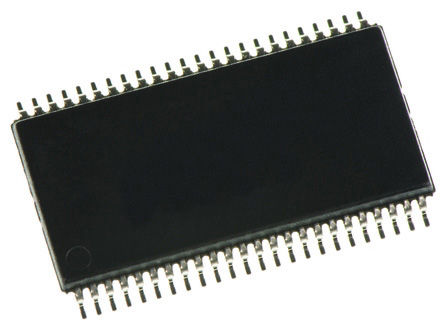

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- If you are looking for a device to shift between voltage levels in your microprocessor-based circuit, then the SN74AVCH16T245GR level translator from Texas Instruments is for you. With a 3-state output, this is power management at its best. This level shifter has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.2 V, while its maximum is 3.6 V.
SN74AVCH16T245GR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | TSSOP-48 |
| Supply Voltage (DC) | 1.20V ~ 3.60V |
| Output Current | 12.0 mA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 16 Channel |
| Number of Positions | 48 Position |
| Number of Bits | 16 Bit |
| Propagation Delay Max (tpd) | 2.70 ns |
| Number of Inputs | 16 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of Output Channels | 8 Channel |
| Supply Voltage | 1.2V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 1.2 V |
| Show | |
| Size-Length | 12.6 mm |
| Size-Width | 6.2 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
