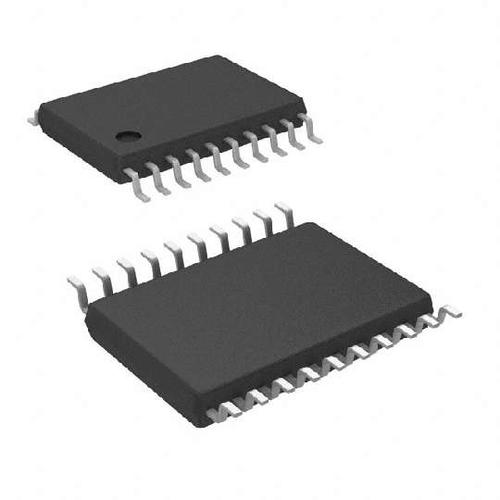

Image is for your reference only,please check specifications for details

SN74CB3T3245PWR - TI
Manufacturer:
TI
ManyChip's Part#:
MC12480328
Category:
Logic Controller, Logic IC
Package:
TSSOP-20
Datasheet:
Datasheet 3D Model
Description:
8Bit FET 2.5V/3.3V Low-Voltage Bus Switch With 5V Tolerant Level Shifter 20-TSSOP -40℃ to 85℃
Stock Locations:
Availability:
1,183 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.42

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN74CB3T3245 device is a high-speed TTL-compatible 8-bit FET bus switch with low ON-state resistance (ron), allowing for minimal propagation delay. The device fully supports mixed-mode signal operation on all data I/O ports by providing voltage translation that tracks VCC.

Show

SN74CB3T3245PWR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	TSSOP-20
Supply Voltage (DC)	2.30V (min)
Output Current	64 mA
Contacts Type	SPST
Number of Bits	8 Bit
Propagation Delay Max (tpd)	250 ps
Polarity	Non-Inverting
Bandwidth	100 MHz
Number of Inputs	8 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.3 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
