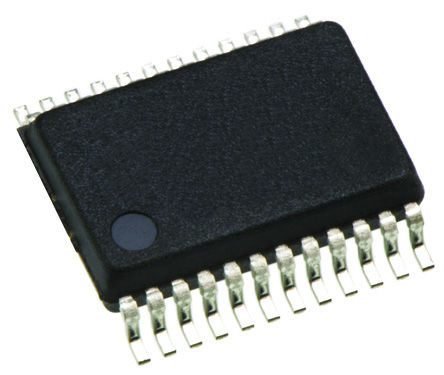

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SN74CBTD3861 provides ten bits of high-speed TTL-compatible bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation delay. A diode to VCC is integrated on the die to allow for level shifting from 5-V signals at the device inputs to 3.3-V signals at the device outputs.
- The device is organized as one 10-bit switch with a single output-enable (OE)\ input. When (OE)\ is low, the switch is on, and port A is connected to port B. When (OE)\ is high, the switch is open, and the high-impedance state exists between the two ports.
SN74CBTD3861DBR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | SSOP-24 |
| Supply Voltage (DC) | 4.50V (min) |
| Input Voltage (DC) | 2.00 V |
| Output Current | 64.0 mA |
| Contacts Type | SPST |
| Supply Current | 250 mA |
| Number of Channels | 10 Channel |
| Number of Positions | 24 Position |
| Number of Bits | 10 Bit |
| Propagation Delay Max (tpd) | 350 ps |
| Polarity | Non-Inverting |
| Bandwidth | 20.0 MHz |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 4.5V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Size-Length | 8.2 mm |
| Size-Width | 5.3 mm |
| Size-Height | 1.95 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
