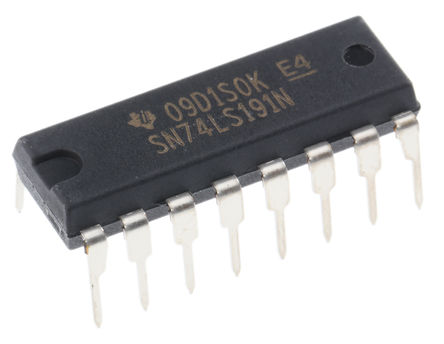

Image is for your reference only,please check specifications for details

SN74LS191N - TI
Manufacturer:
TI
ManyChip's Part#:
MC7983981
Category:
Counter, Counter IC
Package:
PDIP-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS SN74LS191N Binary Synchronous Up / Down Counter, LS Family, 25MHz, 4.75V to 5.25V, DIP-16
Stock Locations:
Availability:
272 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.53

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN74LS191N is a 4-bit synchronous Up/Down Counter with up/down mode control. It has a complexity of 58 equivalent gates. Synchronous operation is provided by having all flip-flops clocked simultaneously so that the outputs change coincident with each other when so instructed by the steering logic. This mode of operation eliminates the output counting spikes normally associated with asynchronous counters. The outputs of the four master-slave flip-flops are triggered on a low-to-high transition of the clock input if the enable input is low. A high at the enable input inhibits counting. Level changes at the enable input should be made only when the clock input is high. The direction of the count is determined by the level of the down/up input. When low, the counter count up and when high, it counts down. A false clock may occur if the down/up input changes while the clock is low.
Counts 8-4-2-1 BCD or binary
Single down/up count control line
Count enable control input
Ripple clock output for cascading
Asynchronously presettable with load control
Parallel outputs
Cascadable for N-bit applications

Show

SN74LS191N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	PDIP-16
Frequency	25 MHz
Digital Logic Level	CMOS
Supply Voltage (DC)	4.75V ~ 5.25V
Number of Outputs	4 Output
Number of Circuits	1 Circuit
Number of Positions	16 Position
Clock Speed	25 MHz
Number of Bits	4 Bit
Voltage Nodes	5.00 V
Output Current Drive	-50.0 µA
Number of Inputs	4 Input
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Weight	0.015227096868 kg
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
