Description

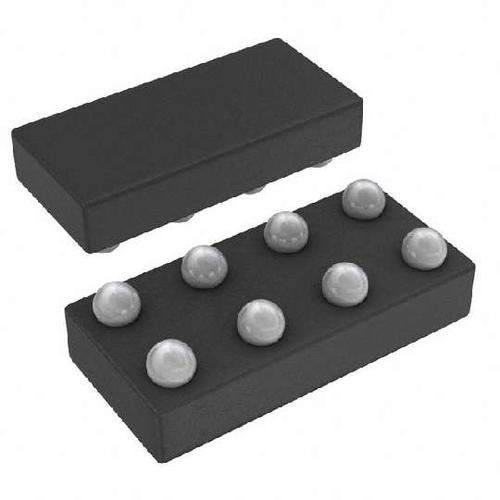

- Texas Instruments" SN74LVC2G02YZPR logic gates will allow you to implement basic logic functions within your electronic circuit. This gate has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V.
SN74LVC2G02YZPR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | DSBGA-8 |
| Supply Voltage (DC) | 1.65V ~ 5.50V |
| Number of Outputs | 1 Output |
| Number of Circuits | 2 Circuit |
| Number of Bits | 2 Bit |
| Propagation Delay Max (tpd) | 4.40 ns |
| Voltage Nodes | 5.00 V, 3.30 V, 2.50 V, 1.80 V |
| Number of Gates | 2 Gate |
| Output Current Drive | -1.00 mA |
| Number of Inputs | 2 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 1.65V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 1.65 V |
| Show | |
| Size-Length | 1.9 mm |
| Size-Width | 0.9 mm |
| Size-Height | 0.3 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
