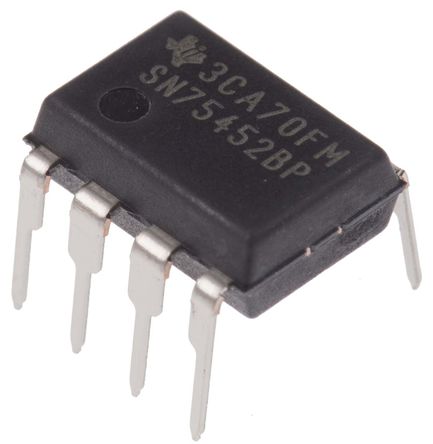

Image is for your reference only,please check specifications for details

SN75452BP - TI
Manufacturer:
TI
ManyChip's Part#:
MC874108
Category:
FET Driver
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
Peripheral Driver, Power, 2Outputs, 4.75V to 5.25V supply, 30V/400mA out, DIP-8
Stock Locations:
Availability:
397 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.33

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN75452BP is a dual very high speed high-current Peripheral Driver designed for use in systems that employ TTL logic. This family is functionally interchangeable and the speed of the devices is equal to that of the SN75450 family and the parts are designed to ensure freedom from latch-up. Diode-clamped inputs simplify circuit design. Typical applications include high-speed logic buffers, power drivers, relay drivers, lamp drivers, MOS drivers, line drivers and memory drivers.
High-voltage outputs
No output Latch-up at 20V
High-speed switching
Circuit flexibility for varied applications
TTL-compatible diode-clamped inputs
Plastic DIP (P) with copper lead frame provides cooler operation and improved reliability

Show

SN75452BP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Voltage (DC)	4.75V (min)
Rise/Fall Time	5ns, 7ns
Number of Outputs	2 Output
Output Voltage	30 V
Output Current	400 mA
Supply Current	71 mA
Power Dissipation	1000 mW
Drivers Per Package	2
Input Voltage (Max)	5.5 V
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
Input Voltage	5.5 V
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
