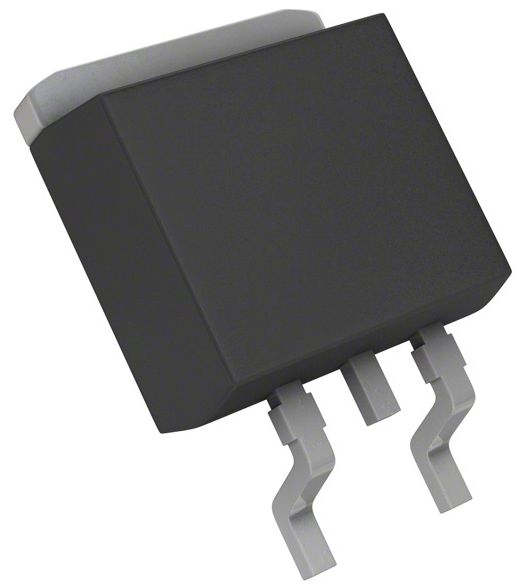

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

SPD01N60C3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Voltage Rating (DC)	650 V
Current Rating	800 mA
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	6 Ω
Polarity	N-CH
Power Dissipation	11 W
Input Capacitance	100 pF
Gate Charge	5.00 nC
Drain to Source Voltage (Vds)	650 V
Breakdown Voltage (Drain to Source)	600 V
Continuous Drain Current (Ids)	800 mA
Rise Time	25 ns
Input Capacitance (Ciss)	100pF @25V(Vds)
Input Power (Max)	11 W
Fall Time	30 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	11000 mW
	Show
Size-Length	6.5 mm
Size-Width	6.22 mm
Size-Height	2.3 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Obsolete
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
