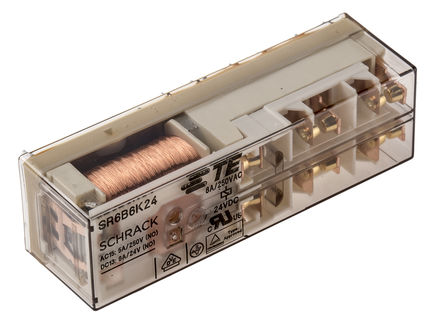

Image is for your reference only,please check specifications for details
- SR6B6K24 - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC49580800
-
Category:Power Relay
-
Package:-
-
Datasheet:Datasheet 3D Model
-
Description:Electromechanical Relay 24VDC 720Ω 8A 4PST-NO/DPST-NC( (55mm 16.5mm 16.5mm)) THT Safety Relay
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SR6B6K24 is a Force Guided Relay with DC coil. This SR6-series relay has 4-form-A and 2-form-B (4NO + 2NC) AgSnO2 + 0.2µm Au contacts for 800mW version. Typical applications such as emergency shut-off, press control, machine control, elevator/escalator control and safety relays.
- Reinforced insulation between contacts
- -25 to 70°C Ambient temperature range
SR6B6K24 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 14 Pin |
| Case/Package | - |
| Voltage Rating (AC) | 400 V |
| Current Rating | 8 A |
| Contacts Type | DPST-NC |
| Contact Current Rating | 8 A |
| Coil Voltage | 24 VDC |
| Coil Current | 33.33 mA |
| Coil Voltage (AC) | 24.0 V |
| Coil Power (DC) | 800 mW |
| Coil Resistance | 720 Ω |
| Coil Voltage (DC) | 24 V |
| Coil Power | 800 mW |
| Input Power (Max) | 2 KVA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Voltage Rating | 24 VDC |
| Show | |
| Size-Length | 55 mm |
| Size-Height | 16.5 mm |
| Contact Material | Silver Tin Oxide |
| Operating Temperature | -25℃ ~ 70℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
